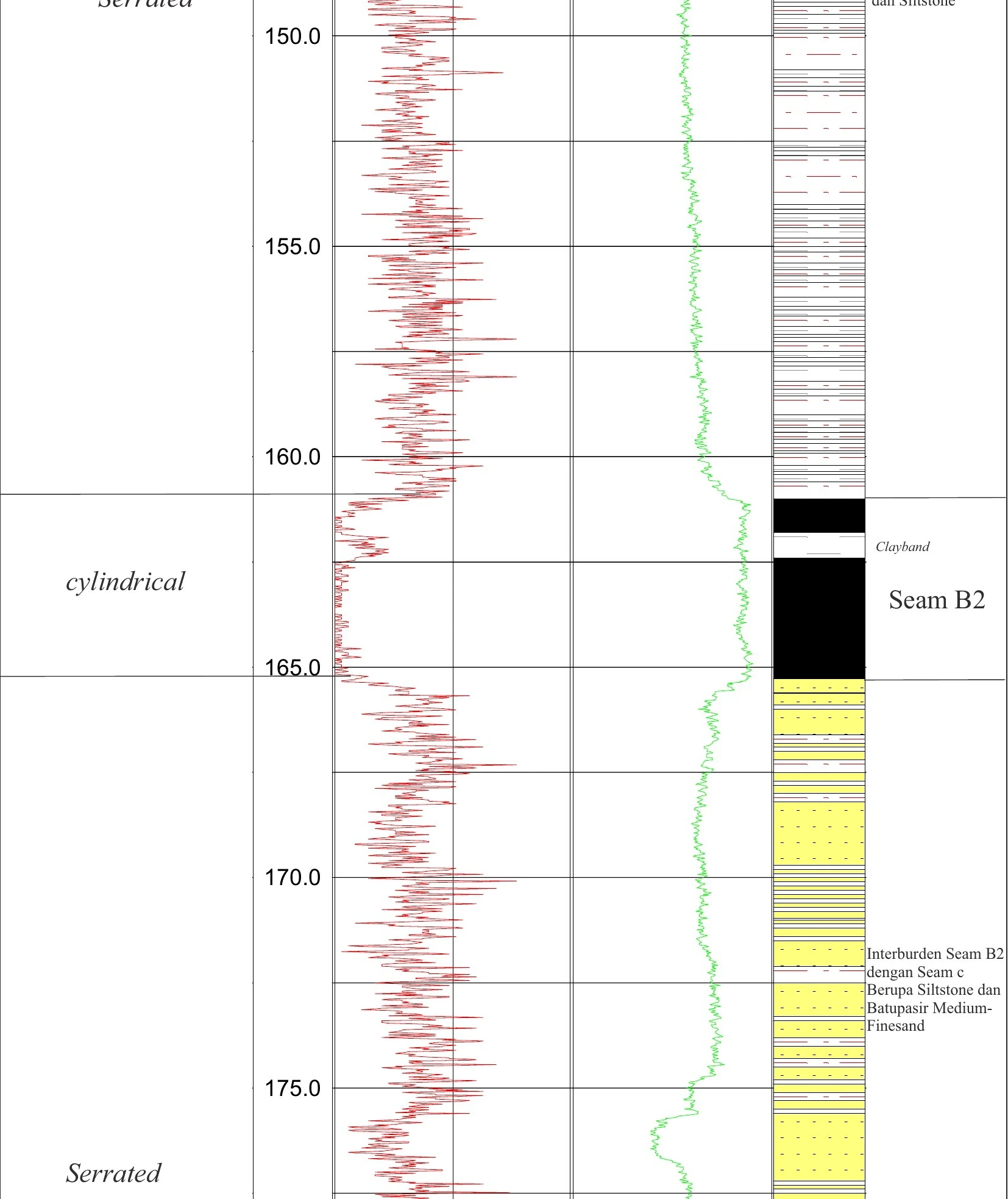

RTS 06 Stratigraphic Panel — Sheet 43
Sheet 43 is tranche 4 of the 5-sheet RTS 06 profile, bounded by Sheets 42 and 44; continuity at both joins is part of the evidence. The thesis places Seam A1 at about 87–96 m and Seam B2 at about 161–165 m in RTS 06.
SOURCE-LED TECHNICAL READING
Geological interpretation and evidential boundary
Sheet 43 is tranche 4 of the 5-sheet RTS 06 profile, bounded by Sheets 42 and 44; continuity at both joins is part of the evidence. The thesis places Seam A1 at about 87–96 m and Seam B2 at about 161–165 m in RTS 06. Those anchors also explain why the blank trailing PDF sheet is excluded rather than interpreted as a missing geological interval. Any scale reset, missing depth or track displacement at a sheet boundary can imitate a seam split or thickness change, so the page join is a geological quality-control step rather than a graphic detail. Taken with its neighbouring tranches, RTS 06 Sheet 43 is auditable correlation control—not independent evidence for depositional environment, coal quality or lateral persistence.
