Petrel · 44 · Seismic structural interpretation

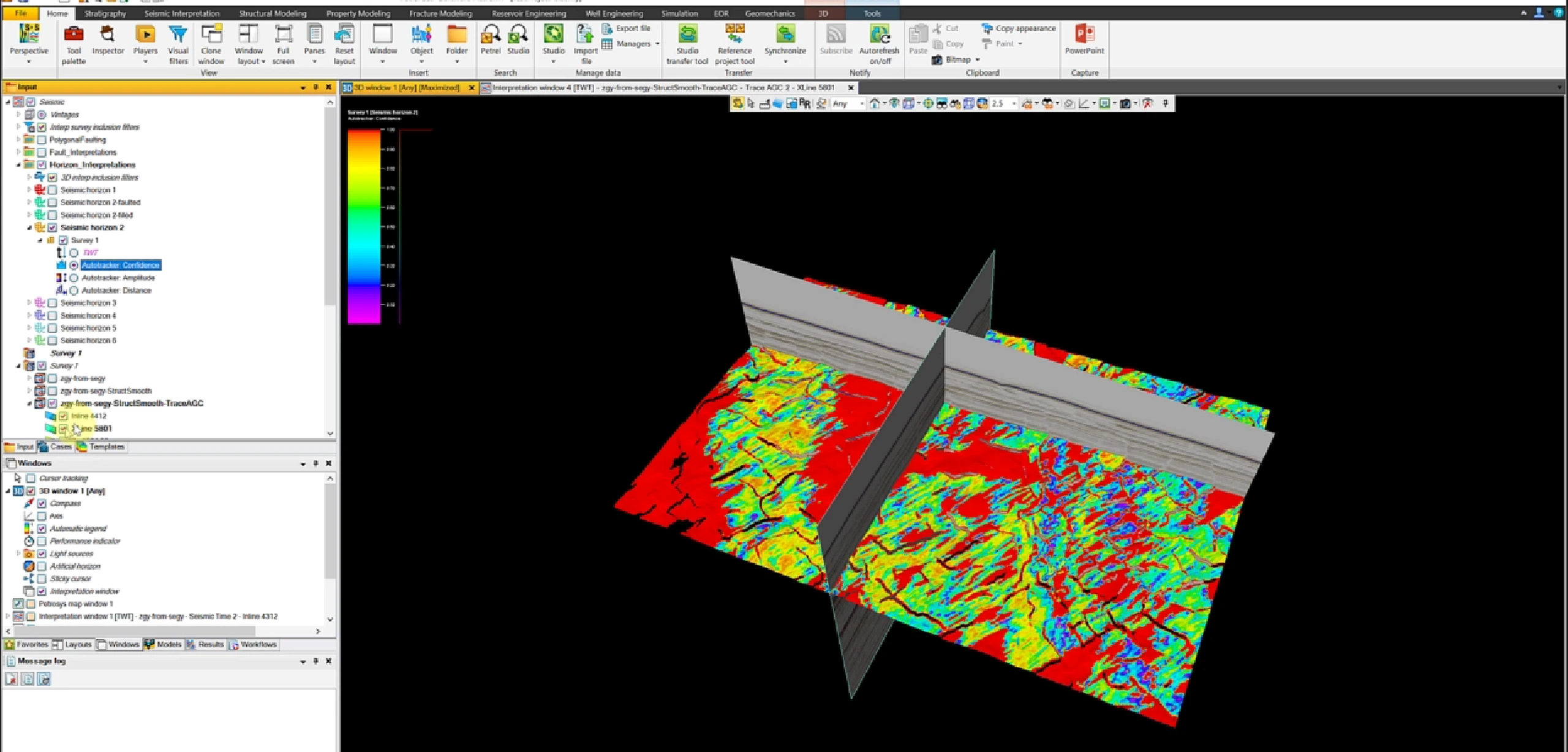

Attribute surface inspected with intersecting seismic panels
Attribute surface inspected with intersecting seismic panels is documented in Petrel at the 44 · seismic structural interpretation stage. Attribute surface inspected with intersecting seismic panels is documented in Petrel at the 44 · seismic structural interpretation stage.
Process stage
The mapped surface is intersected by vertical seismic panels, tying surface morphology back to the interpreted reflectors and faults.
Technical reading
The intersection view tests the surface against independent section control before it is used in the structural framework.
Role in the modelling sequence
Surface-to-seismic validation and three-dimensional tie checking.
- Petrel
- Seismic interpretation
- Structural framework QC
Source record
Original figure caption: Attribute surface inspected with intersecting seismic panels.
- Source
- Source image or document
- Quality
- HD
- Record ID
- petrel-seis-121658
