Petrel · 26 · Seismic structural interpretation
Fault traces and horizon offsets on a seismic section
Fault traces and horizon offsets on a seismic section is documented in Petrel at the 26 · seismic structural interpretation stage. Fault traces and horizon offsets on a seismic section is documented in Petrel at the 26 · seismic structural interpretation stage.
Process stage
Fault traces and fault sticks are displayed on orthogonal seismic panels, with horizon offsets providing structural control.
Technical reading
The geometry is examined across adjacent sections before individual sticks are joined into fault surfaces.
Role in the modelling sequence
Fault picking, fault-stick construction and displacement control.
- Petrel
- Seismic interpretation
- Structural framework QC
Source record

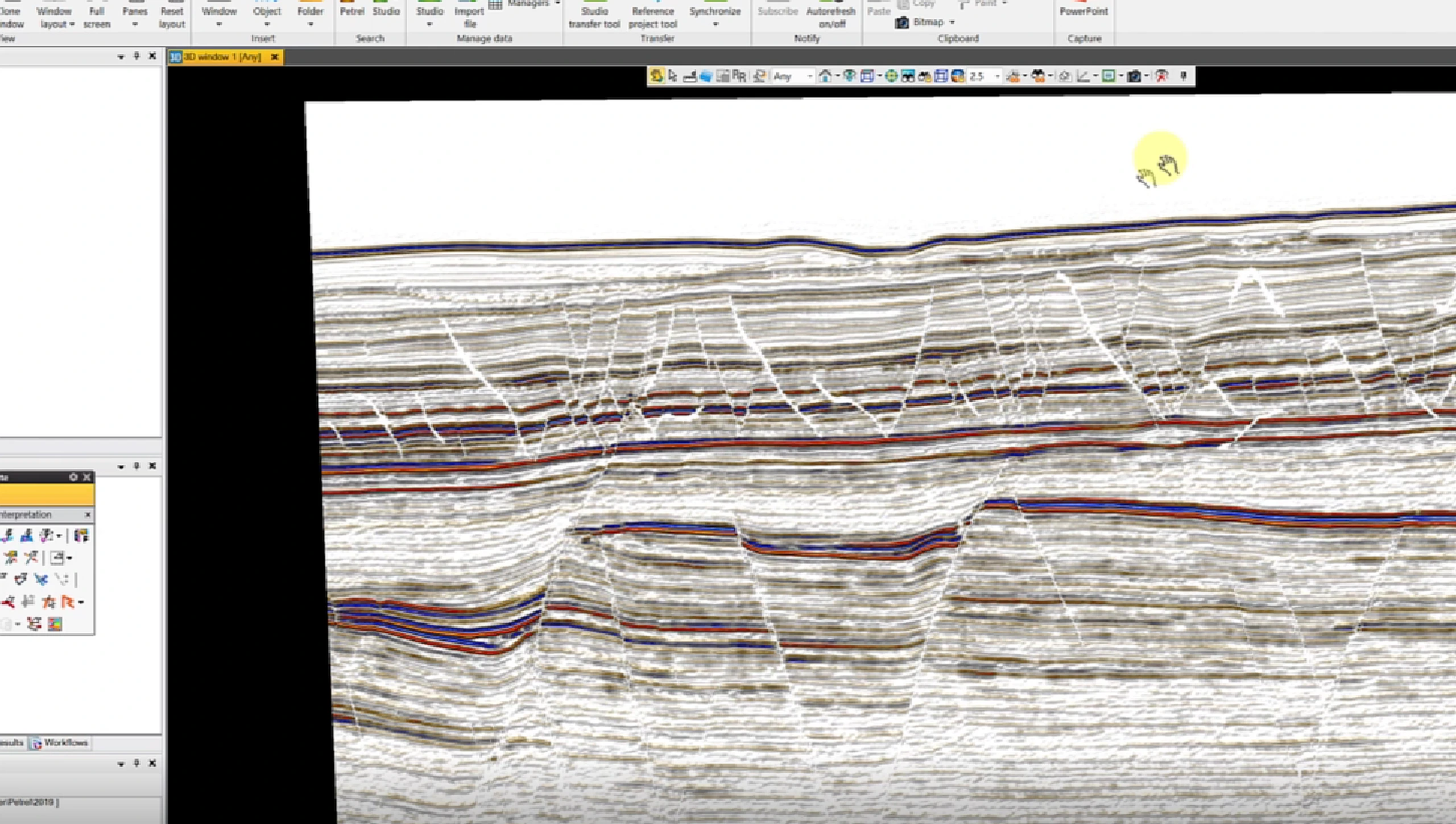

Original figure caption: Fault traces and horizon offsets on a seismic section.
