Seam D core record

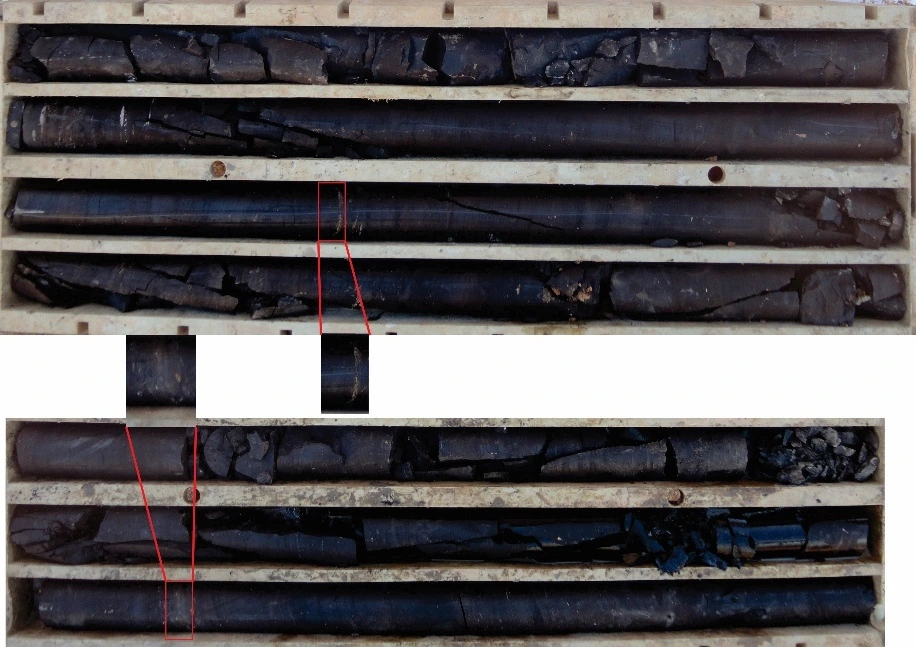

The source places Seam D at about 142–147 m in RTB 09 and 181–185 m in RTS 01; the correlated coal interval is approximately 4 m thick and is described as banded coal, locally with a clay band or parting. In the internship report, the core photograph establishes recovered lithology and vertical order; it cannot measure continuity between boreholes.
SOURCE-LED TECHNICAL READING
Geological interpretation and evidential boundary
The source places Seam D at about 142–147 m in RTB 09 and 181–185 m in RTS 01; the correlated coal interval is approximately 4 m thick and is described as banded coal, locally with a clay band or parting. In the internship report, the core photograph establishes recovered lithology and vertical order; it cannot measure continuity between boreholes. Brightness, dull bands and visible clay partings are valid core-scale descriptions, while peat composition, rank and saleable quality require the linked laboratory results. The two boreholes correlation becomes persuasive where core boundaries and depth-matched gamma–density markers reproduce the same roof–seam–floor succession; incomplete recovery, broken core and depth offsets remain competing explanations for an apparent thickness change. Where the same panel appears in the later thesis, it preserves the source history rather than adding a second independent observation.
- Source
- Private internship source vault · Chapter IV record
- Location in source
- 4.4.1 Seam D
- Image quality
- Source scan
- Record ID
- internship-4-u22
